Begin with a thorough cleaning of the surfaces you wish to treat. Remove any rust, grease, or dirt using a degreaser or sandblasting technique. This step is critical for ensuring that the new surface adheres properly, providing your items with longevity and resilience.
Next, apply a sander or grinder to smooth out imperfections. If the items are large, consider using a power sander for efficiency. For intricate designs, hand sanding might be necessary to achieve the desired finish. Ensure that the entire surface is uniform to avoid any inconsistencies.
After preparation, it’s time to choose your color and finish. Utilize a specialized powder designed for this process, which will offer a wide range of colors and textures to suit your style. Ensure that the material is rated for the temperatures involved in the curing process.
The application stage requires a specialized gun that charges the powder with static electricity, allowing it to cling to the surfaces. Hold the gun at an appropriate distance to achieve even coverage. It’s better to apply multiple thin layers rather than one thick layer to avoid dripping and ensure an even, smooth finish.
Finally, cure the treated items in an oven according to the specifications of the powder. Monitor the temperature closely to ensure that the finish properly bonds, resulting in a durable, aesthetic layer that enhances the practicality and look of your pieces.
Application Process
Ensure that the workspace is well-ventilated, free from contaminants, and equipped with necessary safety gear. Begin by meticulously cleaning the surface of the item. I prefer a mixture of soap and water, followed by rinsing and thorough drying. For stubborn rust or paint, I opt for a wire brush or sandblasting to achieve a clean finish.
Next, I use a high-quality primer designed for the selected finish. Applying a thin layer ensures optimal adhesion of the final layer. An even coverage is crucial; I typically apply it using an electrostatic spray gun for uniformity. Allow the primer to cure based on manufacturer recommendations before moving forward.
Once cured, I select the desired finishing powder, making sure it complements the aesthetics of the piece. I use a powder sprayer for an even application, starting from a distance to avoid clumping. Multiple light coats yield better results than heavy applications.
After achieving the desired coverage, it’s time for curing. I preheat the oven to the recommended temperature and place the item inside. This step is vital, as proper heat activation ensures the durability and finish quality. After the designated time has elapsed, I carefully remove it, allowing it to cool down.
To preserve the finish, I recommend applying a protective sealant after complete cooling. This additional layer enhances longevity and resists damage from environmental factors.
Choosing the Right Powder Coating Material
Selecting the appropriate material for your finishing process is fundamental. A variety of formulations exist, primarily categorized into thermosetting and thermoplastic types. Thermosetting versions are typically found in more durable applications, as they undergo a chemical change during the curing process, resulting in greater resistance to heat and chemicals.
Identify Your Requirements
Consider the specific attributes required for your projects, like UV stability and scratch resistance. If the end product will be exposed to unfavorable weather conditions, outdoor-grade materials are advisable. For indoor use, a wider array of aesthetic finishes and colors are available.
Evaluate Color and Texture Options
Options in color ranges from standard hues to custom shades. Additionally, texture plays a significant role in the final look; matte, gloss, or metallic finishes can dramatically influence aesthetic appeal. Test swatches or samples can help determine which combination aligns best with your vision.
Preparing Surfaces for Coating
Thorough surface preparation is paramount for achieving a strong and lasting finish. Begin by removing any existing paint or protective layers. Use a chemical stripper or a sandblasting technique for the most effective results. Ensure the surfaces are free of rust and corrosion.
Follow these steps for optimal preparation:
- Cleaning: Wash the surfaces with a degreaser to eliminate grease, oil, and dirt. Rinse thoroughly and allow to dry completely.
- Sanding: Use an orbital sander or sandpaper (preferably 80-grit) to smoothen rough areas. This creates a better adhesion surface.
- Rust Treatment: Apply a rust-inhibiting primer if there is any sign of corrosion. Ensure it dries completely according to the manufacturer’s instructions.
Pay special attention to hidden corners and joints where moisture can accumulate, as these areas are more likely to rust. Check for any imperfections; filling gaps or dents with appropriate filler can enhance the final appearance.
Finally, perform a thorough wipe-down using a lint-free cloth to remove any dust or particles left from sanding. This step is critical to ensure an optimal bond with the coating material.
Selecting the Appropriate Equipment for Powder Coating
I recommend investing in a high-quality electrostatic spray gun, which is critical for achieving even coverage on surfaces. Select a model that allows for adjustable voltage settings to optimize performance with various coatings.

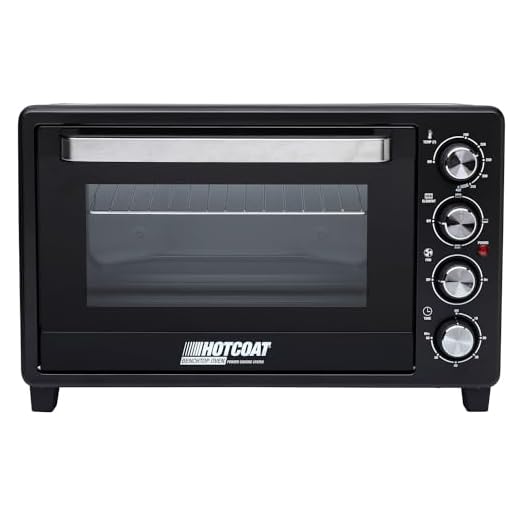

An efficient curing oven is essential; choose one that can reach up to 400°F and offers uniform temperature distribution. Look for thermal profiles to understand how the oven performs with different materials.
Protective gear is non-negotiable: wear a respirator, gloves, and a chemical-resistant suit to prevent contact with fine particles and fumes during the process.
A reliable ventilation system is key. Ensure your workspace has adequate airflow to remove overspray and maintain air quality. A fume extractor could be a valuable addition.
Investing in a sandblasting cabinet for surface preparation greatly improves adhesion. Ensure it’s compatible with various media types to handle different substrates effectively.
Don’t overlook the importance of suitable storage for your powder. Use airtight containers to preserve the quality and avoid moisture absorption, which can compromise results.
Finally, remember to integrate appropriate cleaning equipment for your spray gun and other tools. Cleaning solvents and brushes specific for the materials used will prolong the lifespan of your gear.
Understanding the Powder Coating Process Steps
Preparation is critical before applying the fine polymer finish. Begin with thorough cleaning to remove all dirt, grease, or contaminants. A solution of degreaser can be effective, followed by a rinse with water.
Next, ensure the surface is entirely dry and free from moisture. This step is critical as any remaining water can lead to imperfections in the finish.
Then proceed to sandblasting or grinding the surface. This technique creates a texture that improves adhesion, ensuring that the coating adheres properly. Use appropriate grit sizes and techniques based on the material type.
Once the surface is adequately prepared, utilize an electrostatic spray system. Ground the object while charging the coating particles to achieve even distribution. Adjust the settings to ensure consistent thickness without pooling.
After spraying, the item requires curing. Place it in an oven, typically set between 350°F to 400°F (about 180°C to 200°C). The curing time generally ranges from 10 to 30 minutes, depending on the specific powder used.
| Step | Description |
|---|---|
| 1 | Clean surface to remove contaminants. |
| 2 | Dry the surface completely. |
| 3 | Sandblast or grind for texture. |
| 4 | Electrostatically spray the finish. |
| 5 | Cook in the oven for curing. |
After curing, allow the item to cool. Inspect for defects and repair as needed. This thorough process ensures a uniform and durable finish.
Setting Up Your Workspace for Powder Coating
To optimize results, I ensure my workspace is strategically organized and safe. Start by selecting a well-ventilated area, as proper airflow is crucial during the application procedure.
Environmental Control
Maintain a controlled temperature; the ideal range is between 65°F and 75°F (18°C to 24°C). Humidity levels should be low, typically below 50%, to prevent any potential issues with adhesion or finish quality.
Equipment Arrangement
- Designate a specific zone for spraying powders, keeping it free from dust and debris.
- Set up a workbench with necessary tools within reach, including gloves, masks, and brushes.
- Ensure your curing oven is nearby, with adequate space for both preparation and post-application processes.
- Install lighting that illuminates the workspace evenly, allowing for clear visibility during application.
Always place materials securely to avoid spills or accidents. I utilize containers or rack systems to keep powders and surfaces organized. Prioritize personal safety by wearing a respirator and protective clothing, minimizing exposure to fine particles.
A clean, methodically arranged workspace not only enhances the efficiency of the process but significantly impacts the quality of the end product. Stay focused and methodical, and ensure that every element is where it needs to be before starting your application. This preparation will help achieve a flawless finish.
Curing Process: Importance and Techniques
The curing phase is non-negotiable for achieving durability in your finish. Adequate heat application activates the resin, ensuring proper adhesion and hardness.
Setting the right temperature is paramount, with most powders requiring around 350°F to 400°F for optimal activation. Use an infrared thermometer to monitor surface temperature consistently, rather than relying solely on oven settings.
If you’re working with a larger piece, pay special attention to thermal distribution across the surface. Areas that don’t reach the specified range may lead to incomplete curing, impacting the overall finish. I implement strategic placement in the oven to ensure uniform heat exposure.
The curing duration typically ranges from 10 to 30 minutes, influenced by the type of powder and substrate thickness. I recommend adhering strictly to the manufacturer’s guidelines for timing to achieve the desired results.
Employ a proper ventilation system in your curing space to dissipate fumes and maintain air quality, especially in confined areas. This step not only enhances safety but also improves the working environment.
Post-curing inspection is crucial. As the finish cools, examine for any imperfections like bubbles or uneven surfaces. Identifying issues at this stage allows for prompt corrective actions on subsequent projects.
Incorporating these techniques into your routine will lead to a resilient and aesthetically pleasing surface. Mastering the curing process elevates the quality of your final product, setting you apart in this craft.
Maintaining Powder Coated Surfaces
I recommend cleaning regularly with a mild soap solution to remove dirt and debris. Persistent stains can be treated with a non-abrasive cleaner and a soft cloth. Avoid harsh chemicals that can degrade the finish.
Addressing Scratches and Chips
For minor nicks, spot touch-up paint matching the original shade can be applied. Ensure the surface is clean and dry beforehand. For deeper scratches, consider sanding the area lightly before applying touch-up material to achieve a smoother finish.
Preventing Damage
Utilizing coasters and mats can significantly shield surfaces from heat and moisture. Placing items carefully prevents scratches and scuffs. Additionally, storing outdoor pieces in a sheltered area reduces exposure to the elements, prolonging the lifespan of the finish.
Regular inspections will help you catch any signs of wear early. Quick remedies will maintain the integrity and appearance of the surfaces, ensuring they look great for years to come.
Common Issues in Powder Coating and Their Solutions
Uneven finish can stem from improper application technique. To address this, I carefully adjust the spray pressure and maintain a consistent distance from the surface to ensure an even layer.
Orange peel texture arises from excessive thickness or inadequate curing. To remedy this, I reduce the powder thickness and check the curing temperature with a reliable thermometer. Ensuring proper temperature control during the curing phase significantly improves the surface quality.
Chalking occurs due to poor material quality or environmental exposure. I opt for high-quality materials designed for outdoor usage, and I store the products away from direct sunlight to mitigate this issue.
Adhesion problems can result from insufficient surface preparation. To solve this, I rigorously clean the surfaces and utilize a suitable primer or pre-treatment to enhance bonding.
Color mismatch can be frustrating, especially with multiple batches. I always source the powder from a single supplier and check the batch numbers to maintain color consistency across projects.
Partially cured surfaces may occur from incorrect curing times or temperatures. I consistently monitor both the time and the temperature settings according to the powder manufacturer’s specifications to ensure full curing.
Pinholes appear due to trapped contaminants or moisture in the substrate. I implement a thorough cleaning process and ensure the metal is completely dry before application, preventing moisture-related issues.
