To achieve a strong connection between pieces, it’s critical to apply the correct heat and speed when joining components. I recommend starting with a moderate amperage setting on your machine and adjusting as necessary based on the thickness of the material. Always ensure that the surfaces are clean; any rust or grease can negatively impact adhesion.
Choosing the right filler material is equally essential. For this type of project, a mild steel rod is ideal due to its compatibility and ability to create a strong bond. Additionally, using a flux-coated electrode can simplify the process, as it helps with cleanliness during the operation.
Maintaining a steady hand during the process will greatly improve the quality of the joint. Position the torch at a consistent angle to ensure the heat is evenly distributed along the seam, which will also help to prevent warping. It’s beneficial to practice on scrap pieces if you’re new to this technique, as it allows you to refine your skills without the pressure of working on your final pieces.
Finally, don’t forget to allow your creation to cool gradually. Rapid cooling can lead to stress fractures in the metal. A gentle, natural cooling process will strengthen your joints and enhance the overall durability of the piece.
Welding Wrought Iron Furniture
Focus on selecting the right electrode for the task. For mild steel, I prefer a 6011 or 6013 rod, which provides a good balance between penetration and ease of use. Make sure to pre-clean the surfaces to remove any rust, paint, or oils; a wire brush or grinder works well for this.
Adjust the amperage based on the material thickness. For thin pieces, I typically set it around 90 amps. For thicker stock, I move it up to 130 amps. Always keep the torch at a consistent angle of about 15 degrees from vertical, making sure to maintain a steady pace to ensure even bead formation.
I recommend starting with tacks to hold joints together before fully fusing them. This helps ensure that everything stays aligned during the process. Use intermittent welding to prevent warping, especially on larger pieces where heat can accumulate.
When finishing your joints, grind them down gently to create a smooth surface for painting or coating. Applying a rust-inhibiting primer before the final paint is crucial for long-lasting durability.
Lastly, I always wear proper protective gear, including a welding helmet with a shade appropriate for the job, gloves, and long sleeves to prevent burns and injuries. Safety is paramount throughout the process.
Selecting the Right Tools and Equipment for Wrought Iron Welding
I recommend investing in a MIG welder, as it provides ease of use and versatility. Look for one capable of handling at least 220 amps, which is suitable for thicker materials.
Acquiring a reliable gas supply is necessary. Using a mix of argon and CO2 enhances the quality of the joint, reducing spatter and improving penetration. Ensure your gas flow rate is around 20-25 cubic feet per hour for effective results.
Protective Gear

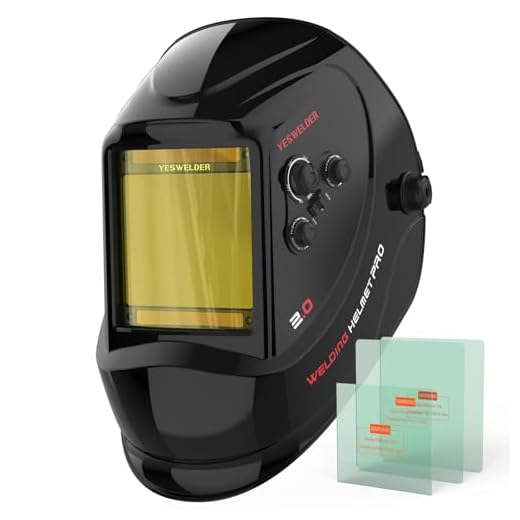

Protective equipment cannot be overlooked. A high-quality welding helmet with auto-darkening features significantly enhances safety. Wear fire-resistant gloves, long-sleeve clothing, and safety boots to minimize exposure to sparks and heat.
Additional Accessories
Consider using a grinder to prepare surfaces. The right grinding discs help clean areas for better fusion. Clamps are also beneficial for securing pieces, maintaining their position while working. Finally, investing in a wire brush will aid in cleaning and finishing your projects.
Preparing Wrought Iron Pieces for Welding
Begin by thoroughly cleaning the surfaces of the pieces. Remove all rust, paint, and debris using a wire brush or grinder. Ensure that the metal is smooth and free of contaminants to achieve a strong bond during the joining process.
Next, it’s important to accurately measure and mark where the components will be joined. Use a pencil or scribe tool for precise alignment, as a well-planned layout helps in creating stable and cohesive structures.
Joint Design Considerations
Selecting the appropriate joint design is vital for strength and durability. Common joint types include butt joints, corner joints, and lap joints, each serving different structural purposes. I prefer using lap joints for their added strength in furniture applications.
Pre-heat if Necessary
For larger or thicker pieces, consider pre-heating the metal to a temperature between 250°F and 300°F. This process can minimize distortion and help with the overall bonding during the attachment process.
| Preparation Step | Description |
|---|---|
| Cleaning | Use wire brushes and grinders to remove rust and debris. |
| Measuring | Accurately mark where the components will be connected. |
| Choosing Joints | Select joint types based on structural needs. |
| Pre-heating | Apply heat to larger pieces to reduce distortion. |
Finally, ensure that all safety equipment is on-hand and in good condition, including gloves, goggles, and protective clothing. Working safely is paramount throughout the process.
Understanding Different Welding Techniques for Wrought Iron
For working with this material, I recommend primarily focusing on MIG (Metal Inert Gas) and TIG (Tungsten Inert Gas) methods, as both offer distinct advantages depending on the project requirements.
MIG Technique
MIG allows for faster processing, making it suitable for larger pieces. I find the setup straightforward, with a continuous feed of filler metal, creating strong joins with less effort. Adjusting the voltage and wire feed speed helps control heat input and penetration depth. Use a shielding gas like Argon or a mix of Argon and CO2 to prevent oxidation.
TIG Technique
TIG provides greater precision, ideal for intricate designs. With this approach, I can use a non-consumable tungsten electrode, giving me the ability to create clean, high-quality seams. It’s beneficial for thinner materials or detailed work, though it requires steady hands and more time. Employ helium or Argon for shielding to protect the weld pool from atmospheric contamination.
Understanding these techniques enables me to select the right one based on the specific piece being created. Each method requires practice, but mastering both broadens my capabilities and enhances the final product’s quality.
Ensuring Safety Measures While Working on Metal Projects
Use personal protective equipment (PPE) such as welding helmets with appropriate lenses, gloves resistant to heat, and heavy-duty clothing to shield against sparks and intense heat. Always have fire extinguishing equipment nearby to tackle accidental fires.
Ventilation and Space Considerations
Ensure adequate ventilation in the workspace to avoid harmful fume accumulation. If indoors, consider using fans or exhaust systems. Maintain a clean area free from clutter, ensuring that flammable materials are stored away safely.
Post-Work Safety
After completing a project, allow all components to cool thoroughly before handling. Double-check tools and equipment for any potential hazards and perform regular maintenance to ensure everything remains in good working order.
Finishing Techniques for a Durable Welded Metal Surface
I recommend using a wire brush or grinder to clean any slag or debris from the welded joints. This preparation ensures a smoother surface and aids in the adhesion of subsequent coatings.
Applying a primer specifically designed for metals is crucial. Choose a rust-inhibiting primer to provide an effective barrier against corrosion. Spray or brush the primer evenly across all surfaces, including hidden areas.
For the top coat, I suggest using either a powder coat or a polyurethane-based paint. Powder coating offers durability and a wide range of colors, while polyurethane provides excellent flexibility and UV resistance. Follow the manufacturer’s guidelines for the best results during application.
After painting, allow sufficient curing time. Ensure the coating is fully set to maximize its protective attributes.
For added protection, consider adding a clear sealant. This product can enhance the finish and provide an extra layer against the elements. Reapply as necessary, depending on the environmental exposure.
Finally, regularly maintain the surface by cleaning it with mild soap and water. This practice helps to prevent build-up and extends the life of the finish.
Common Mistakes to Avoid When Welding Wrought Iron
Always check the metal for rust or contaminants before beginning. Neglecting this can lead to weak joints and poor adhesion.
Poor Preparation
- Failing to clean the surfaces can result in spatter and weak spots.
- Inadequate fit-up between pieces may cause misalignment during the process.
- Ignoring the necessary pre-heating can lead to cracking in thicker sections.
Improper Technique
- Using the wrong speed can result in too much heat or insufficient penetration.
- Incorrect electrode angle might create inconsistent seams.
- Overlooking the size of the bead leads to excess material, which can cause warping.
Also, avoid too much heat in small areas; this can warp the structure. Ensuring that I am using the right amperage based on the material thickness is imperative. Proper cooling time is also vital–rushing this can compromise integrity.
Ignoring Safety Measures
- Not wearing adequate protective gear can result in injuries from sparks and UV radiation.
- Neglecting proper ventilation risks inhaling harmful fumes.
Understand and avoid these pitfalls to achieve strong and reliable joints throughout your project. Continuous practice and awareness will enhance my skills over time.
